BBQ gas connection

[spongebob59]

Album — Postimages

postimg.cc

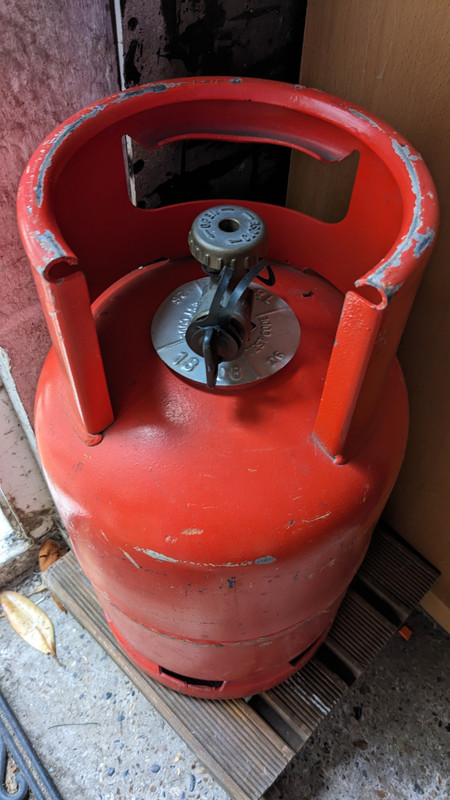

I've managed to get a calor gas bottle so I can use the Weber this weekend but seem to be missing something so I can connect the bottle to the BBQ.
Previous bottle was connected by clicking the regulator directly to bottle, but this doesn't seem possible now, so any suggestions as to what I need to source ?

Ta.



[jim8flog]

did you get a red (propane) or a blue (butane) bottle?

Is this the type where the regulator is screwed on to the bottle? Most common with the red propane bottle.



[jim8flog]

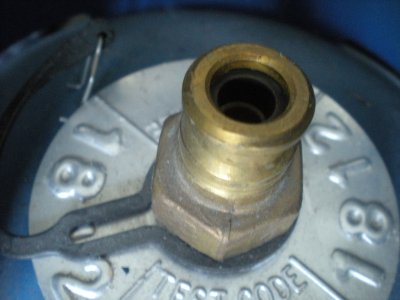

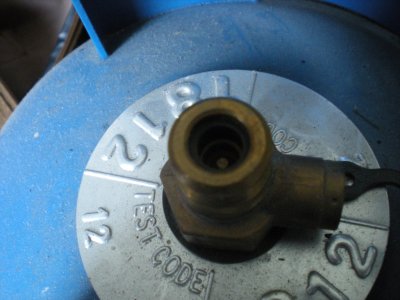

This is the top that utilises the quick attach regulator




The screwed on is obvious but note if it a red cylinder it is a reverse thread.



[spongebob59]

It's a red propane cylinder, the top bit has the open / close valve and the side bit has a removable plug so something must insert there, but I don't know what.



[Bunkermagnet]

You need a screw on gas regulater

https://appliances.calor.co.uk/media/catalog/product/cache/a8c2d2e1fb96adc49bdd09c8f4f2fb5a/6/0/601229_1.jpg

Then you clamp your hose to the output side and fit the other end to you bbq



[jim8flog]

AS per bunker magnet.

To use this bottle you need to change the regulator on the BBQ

You can get them with a handwheel if you do not have the right size spanner (long link but just search on propane regulator)

Amazon.co.uk



[jim8flog]

PS only just noticed your piccy. Undo the plastic bit to expose the thread.
